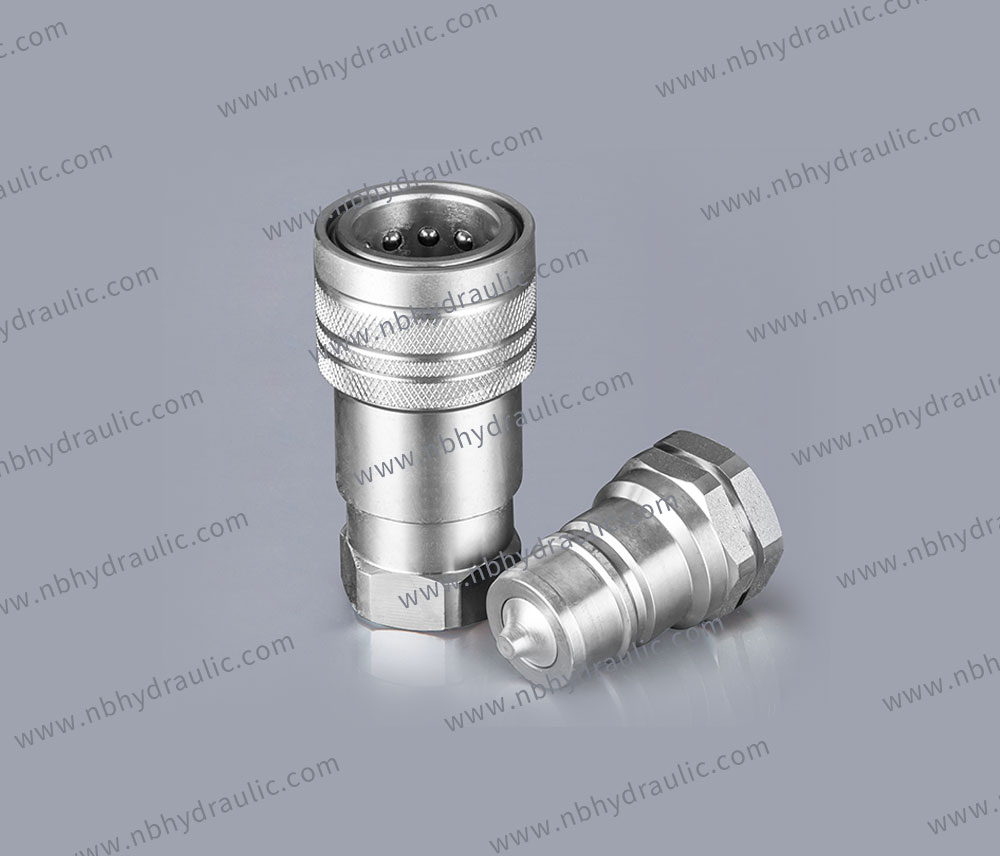

Characteristics:

According to the standard ISO7241-1A

Poppet valves allow larger flow

Locking ball system allows quick connection&disconnection

Bidirectional flow

Caps&plugs with both plastics and aluminium

Application:

Versatile KSA series couplings are used in a wide range of hydraulic applications including agricultural applications, Mobile and construction equipment, In-plant machinery including hydraulic power units and hand tools.

They can be found anyplace where the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.

Specification:

KSAK-08 poppet valve with pressure relief

Standard: ISO 7241-1A

Materials: zinc-plated carbon steel body

Seals: standard in nitrile NBR. On request FKM,EPDM seals

Back-up ring: PTFE

Working temperature: with standard seals -25℃ + 125℃

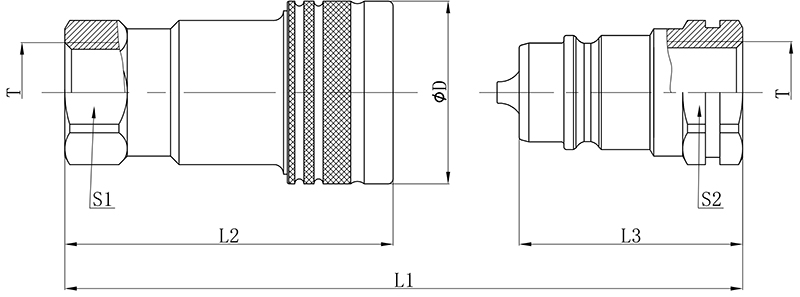

LPHISOL1L2L3Ø DS1S2TCOD.(F)COD.(M)
046.370.549.235.026.019.019.01/4"BSPKSA-04F-BSPKSA-04M-BSP








1/4"BSPTKSA-04F-BSPTKSA-04M-BSPT








1/4"NPTKSA-04F-NPTKSA-04M-NPT
061085.760.542.530.522.022.03/8"BSPKSA-06F-BSPKSA-06M-BSP








3/8"BSPTKSA-06F-BSPTKSA-06M-BSPT








3/8"NPTKSA-06F-NPTKSA-06M-NPT
0812.593.068.546.538.027.027.01/2"BSPKSA-08F-BSPKSA-08M-BSP








1/2"BSPTKSA-08F-BSPTKSA-08M-BSPT








1/2"NPTKSA-08F-NPTKSA-08M-NPT








3/4"UNFKSA-08F-UNF34KSA-08M-UNF34








7/8"UNFKSA-08F-UNF78KSA-08M-UNF78








M18*1.5KSA-08F-M1815KSA-08M-M1815








M20*1.5KSA-08F-M2015KSA-08M-M2015








M22*1.5KSA-08F-M2215KSA-08M-M2215








1/2"BSPKSAK-08F-BSPKSAK-08M-BSP








1/2"BSPTKSAK-08F-BSPTKSAK-08M-BSPT








1/2"NPTKSAK-08F-NPTKSAK-08M-NPT








3/4"UNFKSAK-08F-UNF34KSAK-08M-UNF34








7/8"UNFKSAK-08F-UNF78KSAK-08M-UNF78








M18*1.5KSAK-08F-M1815KSAK-08M-M1815








M20*1.5KSAK-08F-M2015KSAK-08M-M2015








M22*1.5KSAK-08F-M2215KSAK-08M-M2215
1220114.284.157.146.034.034.03/4"BSPKSA-12F-BSPKSA-12M-BSP








3/4"BSPTKSA-12F-BSPTKSA-12M-BSPT








3/4"NPTKSA-12F-NPTKSA-12M-NPT








1-1/16UNFKSA-12F-UNF1116KSA-12M-UNF1116
1625131.899.565.552.041.041.01"BSPKSA-16F-BSPKSA-16M-BSP








1"BSPTKSA-16F-BSPTKSA-16M-BSPT








1"NPTKSA-16F-NPTKSA-16M-NPT








1-5/16"UNFKSA-16F-UNF1516KSA-16M-UNF1516
2031.5148.0116.074.069.550.050.01-1/4"BSPKSA-20F-BSPKSA-20M-BSP








1-1/4"BSPTKSA-20F-BSPTKSA-20M-BSPT








1-1/4"NPTKSA-20F-NPTKSA-20M-NPT
2440168.0134.784.082.060.060.01-1/2"BSPKSA-24F-BSPKSA-24M-BSP








1-1/2"BSPTKSA-24F-BSPTKSA-24M-BSPT








1-1/2"NPTKSA-24F-NPTKSA-24M-NPT
3250200.2160.0100.099.075.075.02"BSPKSA-32F-BSPKSA-32M-BSP








2"BSPTKSA-32F-BSPTKSA-32M-BSPT








2"NPTKSA-32F-NPTKSA-32M-NPT



Technical Dat:

Nominal SizeMax. Working PressureRated FlowMax flow rateMin. Burst PressureFluid Spillage
MaleFemaleCoupled
LPHISO(bar)(l/m)（l/m)(bar)(bar)(bar)(cc)
046.335012171500170014000.5
061035023461400150015001.9
0812.525045901000140012002.7
1220250106190900150010009.3
162525018928013001300120016
2031.52002884801100850100030
244019037975780080082054
325016075710006509601000120

Accessories:

KSA plastic cap plug.jpg


LPHISOFemale Dust PlugMale Dust CapMaterialColour
046.3KSA-04-PDPKSA-04-PDCPlasticred
0610KSA-06-PDPKSA-06-PDCPlasticred
0812.5KSA-08-PDPKSA-08-PDCPlasticred
1220KSA-12-PDPKSA-12-PDCPlasticred
1625KSA-16-PDPKSA-16-PDCPlasticred

KSA aluminum cap plug.jpg


LPHISOFemale Dust PlugMale Dust CapMaterial
046.3KSA-04-ADPKSA-04-ADCaluminium
0610KSA-06-ADPKSA-06-ADCaluminium
0812.5KSA-08-ADPKSA-08-ADCaluminium
1220KSA-12-ADPKSA-12-ADCaluminium
1625KSA-16-ADPKSA-16-ADCaluminium
2031.5KSA-20-ADPKSA-20-ADCaluminium
2440KSA-24-ADPKSA-24-ADCaluminium
3250KSA-32-ADPKSA-32-ADCaluminium
