产品特性：
按照国际标准7241-1A标准生产
针阀设计可以加大流体的通过量
锁定球系统可快速连接和断开接头
双向流
可提供塑料和铝制防尘帽塞
应用场合：
多功能KSA系列广泛应用于各种液压应用，包括农业应用，移动和建筑设备，工厂内机械，包括液压动力单元和手动工具。
在任何需要连接或断开流体输送管线以进行设备操作或维护的地方都可以找到这种接头。
产品规格：
标准: 国际标准 7241-1A
材质: 主体部件不锈钢316
钢球: 不锈钢316
弹簧: 不锈钢304
密封件: 标准FKM丁腈橡胶， NBR,EPDM可供选择
背托环: PTFE
工作温度: 用标准密封圈 -25℃ + 200℃

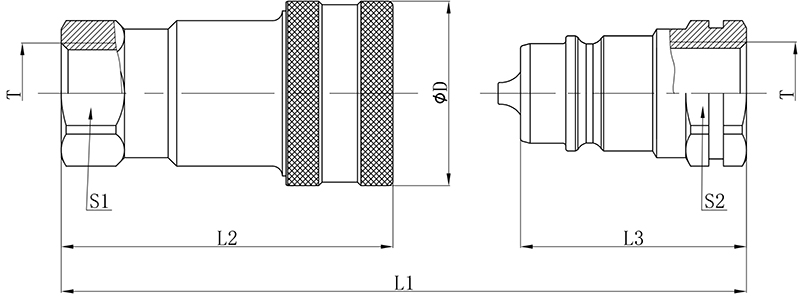

| 力浦液压 | 国际标准 | L1 | L2 | L3 | ØD | S1 | S2 | T | 母接头编号 | 公接头编号 |
| 04 | 6.3 | 70.5 | 49.2 | 35.0 | 26.0 | 19.0 | 19.0 | 1/4"BSP | KSA-SS-04F-BSP | KSA-SS-04M-BSP |
| 1/4"NPT | KSA-SS-04F-NPT | KSA-SS-04M-NPT | ||||||||
| 06 | 10 | 85.7 | 60.5 | 42.5 | 30.5 | 22.0 | 22.0 | 3/8"BSP | KSA-SS-06F-BSP | KSA-SS-06M-BSP |
| 3/8"NPT | KSA-SS-06F-NPT | KSA-SS-06M-NPT | ||||||||
| 08 | 12.5 | 93.0 | 68.5 | 46.5 | 38.0 | 27.0 | 27.0 | 1/2"BSP | KSA-SS-08F-BSP | KSA-SS-08M-BSP |
| 1/2"NPT | KSA-SS-08F-NPT | KSA-SS-08M-NPT | ||||||||
| 12 | 20 | 114.2 | 84.1 | 57.1 | 46.0 | 34.0 | 34.0 | 3/4"BSP | KSA-SS-12F-BSP | KSA-SS-12M-BSP |
| 3/4"NPT | KSA-SS-12F-NPT | KSA-SS-12M-NPT | ||||||||
| 16 | 25 | 131.8 | 99.5 | 65.5 | 52.0 | 41.0 | 41.0 | 1"BSP | KSA-SS-16F-BSP | KSA-SS-16M-BSP |
| 1"NPT | KSA-SS-16F-NPT | KSA-SS-16M-NPT | ||||||||
| 20 | 31.5 | 148.0 | 116.0 | 74.0 | 69.5 | 50.0 | 50.0 | 1-1/4"BSP | KSA-SS-20F-BSP | KSA-SS-20M-BSP |
| 1-1/4"NPT | KSA-SS-20F-NPT | KSA-SS-20M-NPT | ||||||||
| 24 | 40 | 168.0 | 133.2 | 84.0 | 83.0 | 60.0 | 60.0 | 1-1/2"BSP | KSA-SS-24F-BSP | KSA-SS-24M-BSP |
| 1-1/2"NPT | KSA-SS-24F-NPT | KSA-SS-24M-NPT | ||||||||
| 32 | 50 | 180.4 | 150.6 | 90.0 | 101.0 | 70.0 | 70.0 | 2"BSP | KSA-SS-32F-BSP | KSA-SS-32M-BSP |
| 2"NPT | KSA-SS-32F-NPT | KSA-SS-32M-NPT |
技术特性：
| 规格 | 最大工作压力 | 额定流量 | 最大流量 | 最小爆破压力 | 液体溢出量 | ||||||
| 接头体 | 接头套 | 连接下 | |||||||||
| 力浦液压 | 国际标准 | (bar) | (l/m) | （l/m) | (bar) | (bar) | (bar) | (cc) | |||
| 04 | 6.3 | 450 | 12 | 17 | 3200 | 2900 | 2900 | 0.5 | |||
| 06 | 10 | 300 | 23 | 46 | 1250 | 1250 | 1300 | 1.9 | |||
| 08 | 12.5 | 300 | 45 | 90 | 1200 | 1200 | 1350 | 2.7 | |||
| 12 | 20 | 250 | 106 | 190 | 800 | 1000 | 1100 | 9.3 | |||
| 16 | 25 | 200 | 189 | 280 | 600 | 650 | 850 | 19 | |||
| 20 | 31.5 | 100 | 288 | 480 | 400 | 400 | 400 | 30 | |||
| 24 | 40 | 80 | 379 | 700 | 320 | 320 | 320 | 54 | |||
| 32 | 50 | 60 | 757 | 1000 | 250 | 250 | 250 | 120 | |||
防尘帽塞：
| 力浦液压 | 国际标准 | 母接头防尘塞 | 公接头防尘帽 | 材质 | 颜色 | |||
| 04 | 6.3 | KSA-04-PDP | KSA-04-PDC | 塑料 | 红色 | |||
| 06 | 10 | KSA-06-PDP | KSA-06-PDC | 塑料 | 红色 | |||
| 08 | 12.5 | KSA-08-PDP | KSA-08-PDC | 塑料 | 红色 | |||
| 12 | 20 | KSA-12-PDP | KSA-12-PDC | 塑料 | 红色 | |||
| 16 | 25 | KSA-16-PDP | KSA-16-PDC | 塑料 | 红色 | |||
| 力浦液压 | 国际标准 | 母接头防尘塞 | 公接头防尘帽 | 材质 | |||
| 04 | 6.3 | KSA-04-ADP | KSA-04-ADC | 铝 | |||
| 06 | 10 | KSA-06-ADP | KSA-06-ADC | 铝 | |||
| 08 | 12.5 | KSA-08-ADP | KSA-08-ADC | 铝 | |||
| 12 | 20 | KSA-12-ADP | KSA-12-ADC | 铝 | |||
| 16 | 25 | KSA-16-ADP | KSA-16-ADC | 铝 | |||
| 20 | 31.5 | KSA-20-ADP | KSA-20-ADC | 铝 | |||
| 24 | 40 | KSA-24-ADP | KSA-24-ADC | 铝 | |||
| 32 | 50 | KSA-32-ADP | KSA-32-ADC | 铝 | |||
