产品特性：
按照标准国际标准14541生产
双止阀螺纹连接
末端有多种螺纹形式可供选择：BSP, NPT, 公制螺纹等
自锁连接机构，防止振动造成的意外断开。
螺纹系统允许在残压下的螺纹连接
应用场合：
推荐用于建筑设备，拆除设备，农业机械和其他重型工业应用。
产品规格：
标准: 国际标准 14541
材质:主体优质钢镀锌
密封件: 标准NBR丁腈橡胶， FKM,EPDM可供选择
背托环: PTFE
工作温度: 用标准密封圈 -25℃ + 125℃

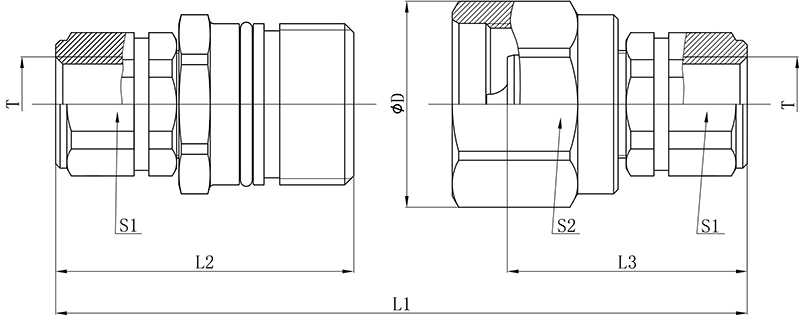

| 力浦液压 | 国际标准 | L1 | L2 | L3 | ØD | S1 | S2 | T | 母接头编号 | 公接头编号 |
| 06 | 10 | 98.5 | 64.2 | 49.5 | 34.5 | 24.0 | 30.0 | 1/4"BSP | KSG3-06-04F-BSP | KSG3-HN-06-04M-BSP |
| 1/4"NPT | KSG3-06-04F-NPT | KSG3-HN-06-04M-NPT | ||||||||
| 3/8"BSP | KSG3-06-06F-BSP | KSG3-HN-06-06M-BSP | ||||||||
| 3/8"NPT | KSG3-06-06F-NPT | KSG3-HN-06-06M-NPT | ||||||||
| 9/16"UNF | KSG3-06F-UNF916 | KSG3-HN-06M-UNF916 | ||||||||
| M16×1.5 | KSG3-06F-M1615 | KSG3-HN-06M-M1615 | ||||||||
| M18×1.5 | KSG3-06F-M1815 | KSG3-HN-06M-M1815 | ||||||||
| 08 | 12.5 | 103.0 | 66.5 | 53.5 | 42.0 | 30.0 | 36.0 | 3/8"BSP | KSG3-08-06F-BSP | KSG3-HN-08-06M-BSP |
| 3/8"NPT | KSG3-08-06F-NPT | KSG3-HN-08-06M-NPT | ||||||||
| 1/2"BSP | KSG3-08-08F-BSP | KSG3-HN-08-08M-BSP | ||||||||
| 1/2"NPT | KSG3-08-08F-NPT | KSG3-HN-08-08M-NPT | ||||||||
| M16×1.5 | KSG3-08F-M1615 | KSG3-HN-08M-M1615 | ||||||||
| M18×1.5 | KSG3-08F-M1815 | KSG3-HN-08M-M1815 | ||||||||
| M22×1.5 | KSG3-08F-M2215 | KSG3-HN-08M-M2215 | ||||||||
| 12 | 20 | 132.0 | 85.0 | 68.0 | 48.0 | 36.0 | 41.0 | 1/2"BSP | KSG3-12-08F-BSP | KSG3-HN-12-08M-BSP |
| 1/2"NPT | KSG3-12-08F-NPT | KSG3-HN-12-08M-NPT | ||||||||
| 3/4"BSP | KSG3-12-12F-BSP | KSG3-HN-12-12M-BSP | ||||||||
| 3/4"NPT | KSG3-12-12F-NPT | KSG3-HN-12-12M-NPT | ||||||||
| M18×1.5 | KSG3-12F-M1815 | KSG3-HN-12M-M1815 | ||||||||
| M22×1.5 | KSG3-12F-M2215 | KSG3-HN-12M-M2215 | ||||||||
| M26×1.5 | KSG3-12F-M2615 | KSG3-HN-12M-M2615 | ||||||||
| 16 | 25 | 151.0 | 100.0 | 77.0 | 55.0 | 41.0 | 50.0 | 3/4" BSP | KSG3-16-12F-BSP | KSG3-HN-16-12M-BSP |
| 3/4" NPT | KSG3-16-12F-NPT | KSG3-HN-16-12M-NPT | ||||||||
| 1"BSP | KSG3-16-16F-BSP | KSG3-HN-16-16M-BSP | ||||||||
| 1"NPT | KSG3-16-16F-NPT | KSG3-HN-16-16M-NPT | ||||||||
| M30×2.0 | KSG3-16F-M3020 | KSG3-HN-16M-M3020 | ||||||||
| 20 | 31.5 | 205 | 122 | 119 | 80 | 65 | 75 | 1-1/4"BSP | KSG3-20-20F-BSP | KSG3-HN-20-20M-BSP |
| 1-1/2"BSP | KSG3-20-24F-BSP | KSG3-HN-20-24M-BSP |
技术特性：
| 规格 | 最大工作压力 | 额定流量 | 最大流量 | 最小爆破压力 | 液体溢出量 | ||||||
| 接头体 | 接头套 | 连接下 | |||||||||
| 力浦液压 | 国际标准 | (bar) | (l/m) | (l/m) | (bar) | (bar) | (bar) | (cc) | |||
| 04 | 6.3 | 450 | 12 | 17 | 1900 | 2700 | 2500 | 0.8 | |||
| 06 | 10 | 400 | 23 | 46 | 1300 | 1500 | 1800 | 1.4 | |||
| 08 | 12.5 | 400 | 45 | 90 | 1200 | 1500 | 1400 | 2.7 | |||
| 12 | 20 | 300 | 106 | 190 | 1000 | 1300 | 1400 | 9.3 | |||
| 16 | 25 | 300 | 189 | 280 | 1000 | 1300 | 1400 | 16 | |||
| 20 | 31.5 | 300 | 288 | 480 | 1000 | 1000 | 1000 | 30 | |||

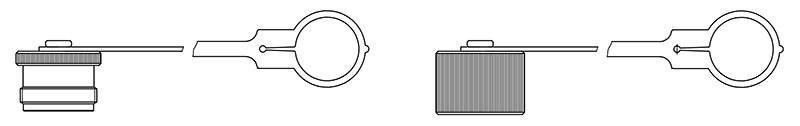

防尘帽塞：
| 力浦液压 | 国际标准 | 公接头防尘塞 | 母接头防尘帽 | 材质 | 颜色 | |||
| 04 | 6.3 | KSG3-04-PDP | KSG3-04-PDC | 塑料 | 红色 | |||
| 06 | 10 | KSG3-06-PDP | KSG3-06-PDC | 塑料 | 红色 | |||
| 08 | 12.5 | KSG3-08-PDP | KSG3-08-PDC | 塑料 | 红色 | |||
| 12 | 20 | KSG3-12-PDP | KSG3-12-PDC | 塑料 | 红色 | |||
| 16 | 25 | KSG3-16-PDP | KSG3-16-PDC | 塑料 | 红色 | |||

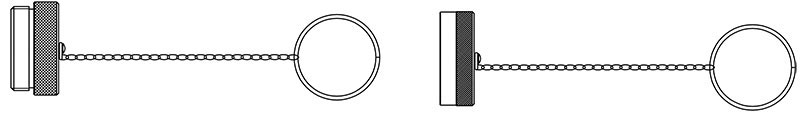

| 力浦液压 | 国际标准 | 公接头防尘塞 | 母接头防尘帽 | 材质 | |||
| 04 | 6.3 | KSG3-04-ADP | KSG3-04-ADC | 铝 | |||
| 06 | 10 | KSG3-06-ADP | KSG3-06-ADC | 铝 | |||
| 08 | 12.5 | KSG3-08-ADP | KSG3-08-ADC | 铝 | |||
| 12 | 20 | KSG3-12-ADP | KSG3-12-ADC | 铝 | |||
| 16 | 25 | KSG3-16-ADP | KSG3-16-ADC | 铝 | |||
| 20 | 31.5 | KSG3-20-ADP | KSG3-20-ADC | 铝 | |||
